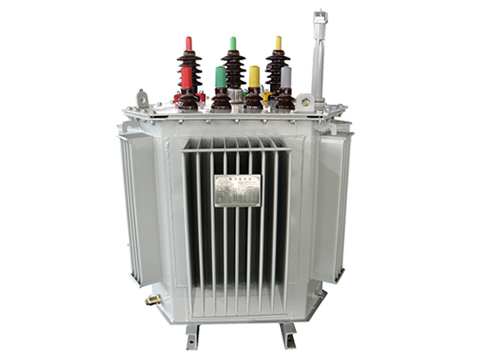

S13 Oil Immersed Distribution Transformer

  S13 Oil Immersed Distribution Transformer uses new materials, new processes, new structures, optimized design, and elaborate manufacturing. Compared with the S11 model, its no-load loss is reduced by 25%, the no-load current is reduced by 35%, and the annual operating cost is reduced by 10.5%. The core material adopts high magnetic permeability and low loss high quality silicon steel sheet, and the structure is a pull screw to support the rigid frame structure, with good stability, low noise, strong short circuit resistance, high quality oxygen-free copper wire for winding, good electrical conductivity and low load loss.

     ◆The altitude does not exceed 1000m;

     ◆Ambient temperature: maximum temperature +40 ° C; maximum daily average temperature +30 ° C; highest annual average temperature +20 ° C; minimum temperature -25 ° C.

 ◆The body is pressed by high-strength electrician laminate, all leads are firmly clamped, and the supports and pads are made of high-density insulated cardboard, which improves the electric field distribution of the transformer;

 ◆The use of corrugated Mailbox, beautiful shape, high heat dissipation efficiency. Highland reinforced casing is suitable for high altitude areas. The series of Transformers have advanced technical performance, energy conservation, environmental protection, safety and reliability;

 ◆The main implementation standards of the products:  GB1094、GB/T6451、JB/T3837.
