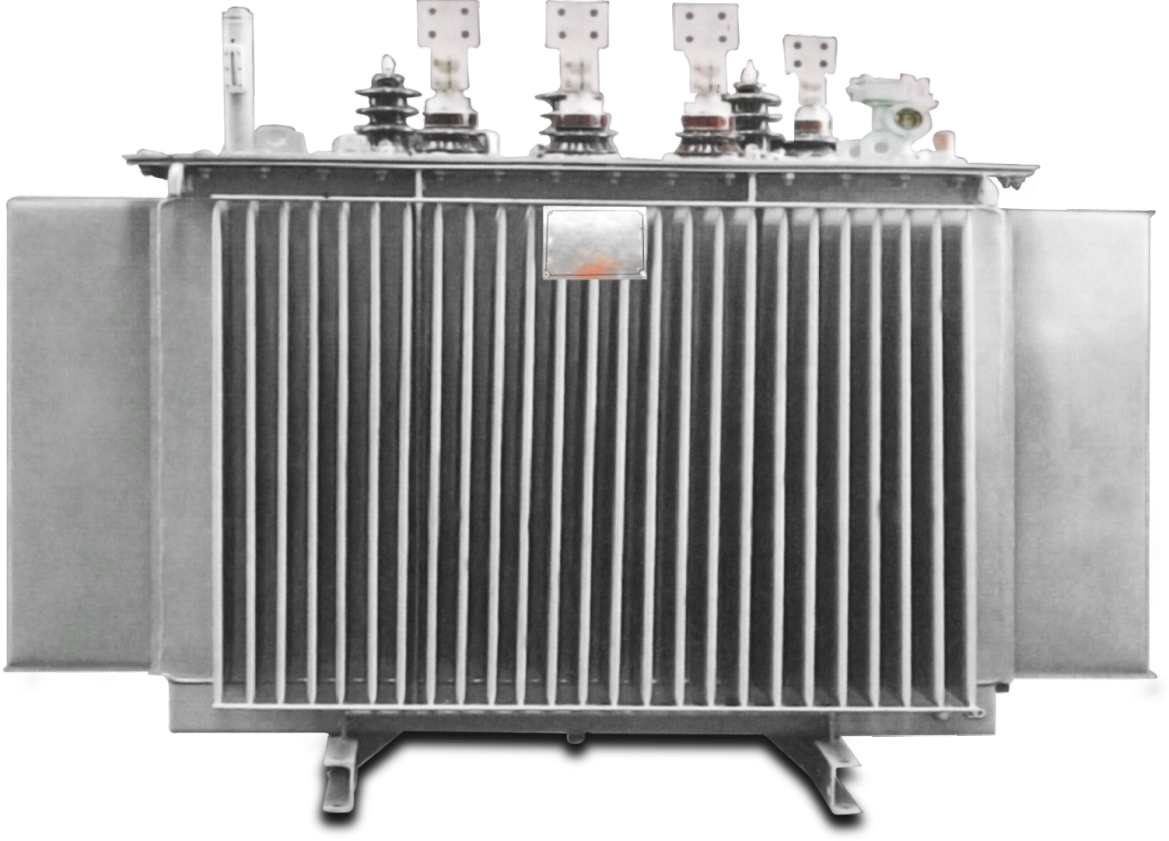

SH15-(M) Amorphous Alloy Distribution Transformer
The amorphous alloy distribution Transformer is referred to as the Amorphous Transformer (AMDT)and amorphous transformers are SH10-SH16. Since the amorphous alloy is not a crystal structure, the loss is very low. Since the amorphous alloy is not a crystal structure and the loss is very low, the iron core of the SH15 type 6-10kV amorphous Transformer adopts a new type of amorphous alloy material, and the low-pressure winding is a copper foil structure. It is currently a transformer with good energy saving effect. Its empty load loss is only 1/4 -1 / 5 of the current Transformer, especially for users with low load rates.
TEL：16515111777
Product details
The amorphous alloy distribution Transformer is referred to as the Amorphous Transformer (AMDT)and amorphous transformers are SH10-SH16. Since the amorphous alloy is not a crystal structure, the loss is very low. Since the amorphous alloy is not a crystal structure and the loss is very low, the iron core of the SH15 type 6-10kV amorphous Transformer adopts a new type of amorphous alloy material, and the low-pressure winding is a copper foil structure. It is currently a transformer with good energy saving effect. Its empty load loss is only 1/4 -1 / 5 of the current Transformer, especially for users with low load rates.
