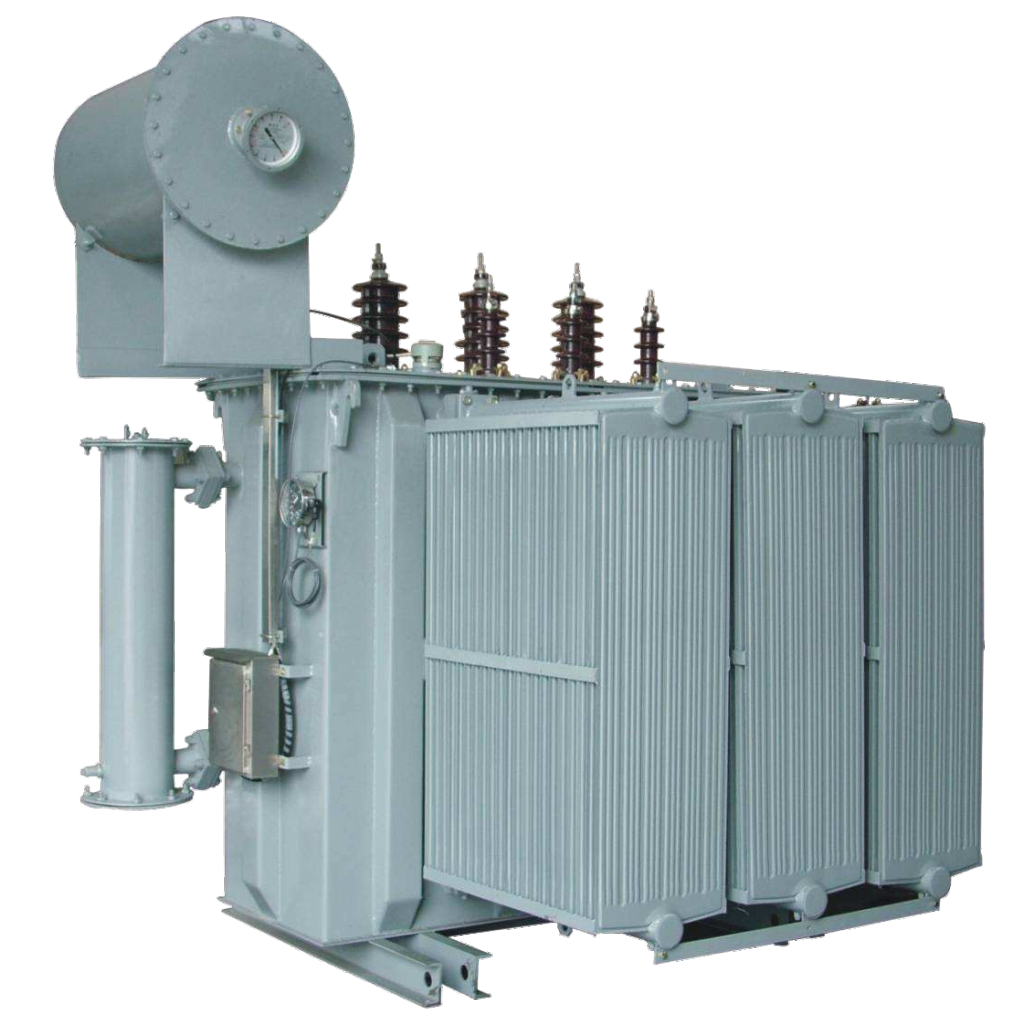

35kV Oil-Immersed Transformer

This product is suitable for power systems such as Three Phase, 50HZ, 35Kv and below, and is the main substation for small and medium-sized substations. For industrial and agricultural distribution, power and lighting. The Company absorbs domestic and foreign advanced technology, adopts new materials, optimizes the design, makes the product more reasonable, the product's electrical strength, mechanical strength, heat dissipation ability has been significantly improved.

                     ◆All high-pressure windings adopt multi-layer cylindrical structure, which improves the impact distribution of windings.

      ◆The low-voltage winding with a capacity in the range of 630 ~ -3150 kVA adopts a tubular or spiral knot, with high mechanical strength, balanced distribution, and strong short-circuit resistance of the product;

      ◆The device body is equipped with a positioning mechanism so that it does not cause displacement during transportation. At the same time, all fasteners are installed with buckling nuts to ensure that the fasteners are not loose during the long-term operation of the product and meet the requirements of non-lifting cores.

      ◆The iron core adopts high quality cold rolled grain-oriented Silicon steel sheet full oblique seam stacking method, and the transformer adopts vacuum injection oil;

      ◆The surface of the product is sprayed with primer and paint after oil removal, rust removal and phosphorization treatment. It can clear the special requirements of metallurgical, petrochemical systems and wet and filthy areas. The whole series of products are beautiful in appearance, small in size, and small in installation and occupancy area, and is an ideal maintenance-free product.
