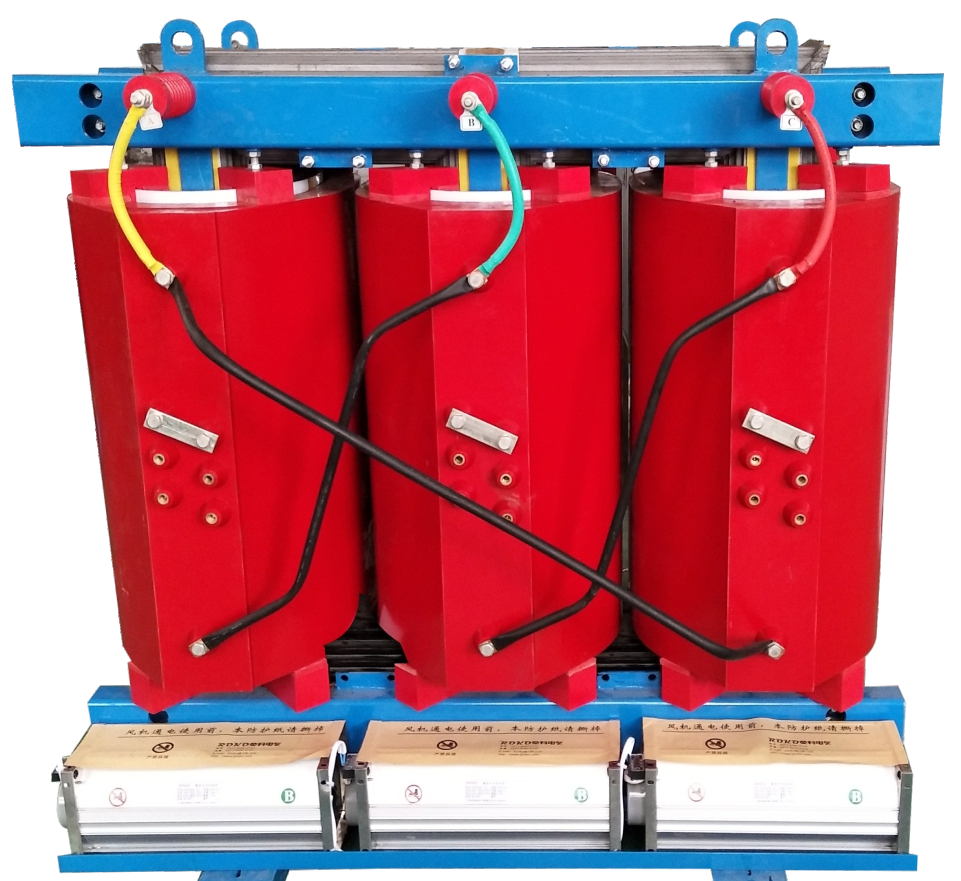

SCB10F Insulated Dry Distribution Transformer

 SCB10F Insulated Dry Distribution Transformer uses epoxy resin as an insulating material. The high-voltage coil is produced by wire winding, and the low-pressure coil is produced by foil winding. The epoxy resin is poured in a vacuum and solidified to form a high-strength glass steel structure. The epoxy resin dry Transformer has the characteristics of good electrical performance, strong lightning shock resistance, strong short-circuit resistance, high mechanical strength, low local discharge power, and high reliability. The temperature display controller can be installed to display and control the operating temperature of the transformer coil to ensure the normal service life of the Transformer.

      ◆Safe, fire-resistant, non-polluting, can be installed directly in the load center;

      ◆Maintenance-free, easy to install, and low overall operating costs;

      ◆It has good moisture-proof performance and can operate normally under 100% humidity. It can be put into operation without pre-drying after shutdown.
