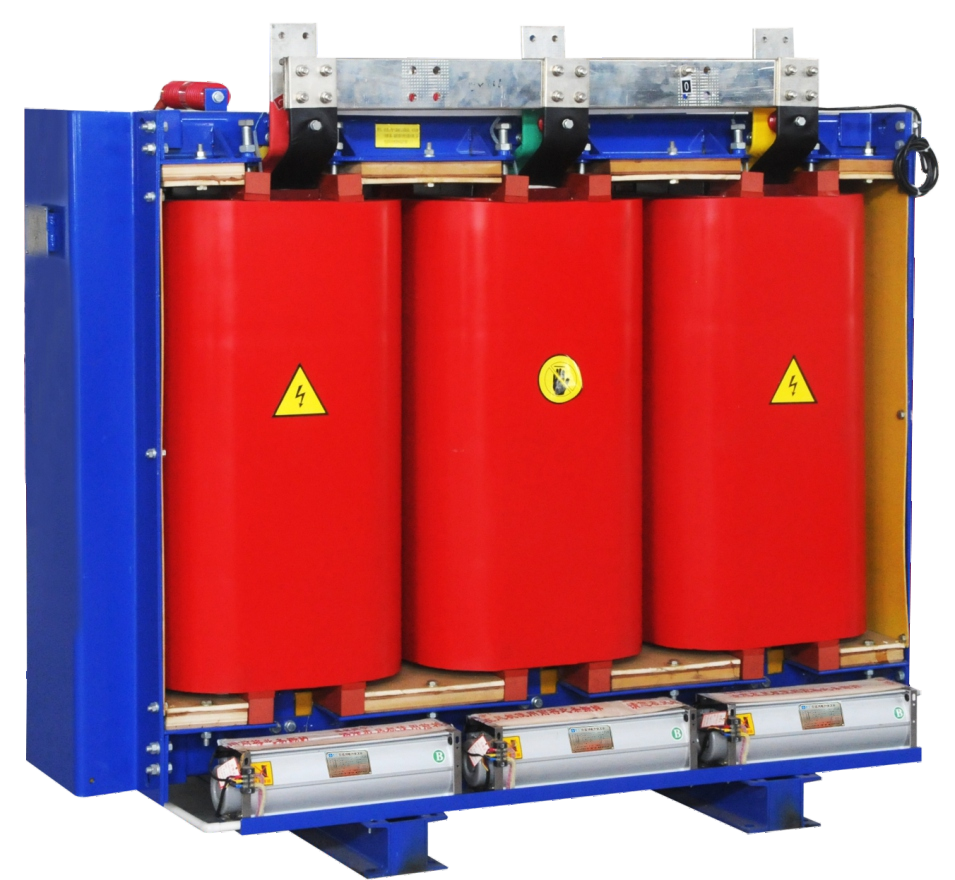

SCBH Amorphous Alloy Core Dry Distribution Transformer

 SCBH Amorphous Alloy Core Dry Distribution Transformer is a new type of energy-saving distribution Transformer with low loss. This product combines the technical advantages of the traditional epoxy pouring dry Transformer of amorphous alloy Transformer and adopts a new structural form. The SCBH series of amorphous alloy dry Transformers have the outstanding characteristics of low loss, especially empty load loss, which is 70 % lower than that of conventional 10 series dry Transformers. The product also has the advantages of compact structure, beautiful shape, low noise, low temperature rise, strong overload ability, stable electrical performance, and convenient maintenance.

  ◆Low energy consumption: soft magnetic guide material with isotropy-amorphous alloy, low magnetization power, high resistivity, low Eddy current loss. The hollow loss and empty current of the iron core made of amorphous alloy material are very low, only 1/3 of the Silicon steel sheet. The empty load loss of the Transformer is 75 % lower than the specified value of GB/T10228. It can greatly reduce the running cost and save energy.

  ◆Strong corrosion resistance: Amorphous alloy core is fully sealed by resin and high-temperature resistant silica gel to effectively prevent corrosion and amorphous alloy debris from falling off, thus effectively protecting the coil of the iron core;

  ◆Low noise: In order to reduce the operating noise of the product, reasonable working magnetic density is selected in the product design, iron core and coil structure are improved during product processing, special noise reduction materials are used, and the noise of amorphous alloy dry Transformer products is far lower than that of international JB/T10088 requirements.
